#include <occ_normal_projection.h>

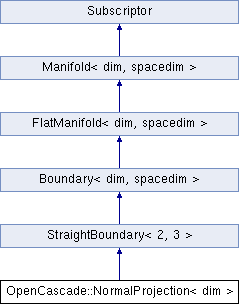

Inheritance diagram for OpenCascade::NormalProjection< dim >:

Public Member Functions
	NormalProjection (const TopoDS_Shape &sh)

virtual Point< 3 >	get_new_point_on_line (const Triangulation< 2, 3 >::line_iterator &line) const

virtual Point< 3 >	get_new_point_on_quad (const Triangulation< 2, 3 >::quad_iterator &quad) const

void	normal_projection (Point< 3 > &projection, const Point< 3 > &origin) const

void	normal_projection_and_diff_forms (Point< 3 > &projection, Point< 3 > &normal, double &mean_curvature, const Point< 3 > &origin) const

template<>
void	normal_projection (Point< 3 > &projection, const Point< 3 > &origin) const

template<>
void	normal_projection (Point< 3 > &projection, const Point< 3 > &origin) const

template<>
void	normal_projection_and_diff_forms (Point< 3 > &, Point< 3 > &, double &, const Point< 3 > &) const

template<>
void	normal_projection_and_diff_forms (Point< 3 > &projection, Point< 3 > &normal, double &mean_curvature, const Point< 3 > &origin) const

Public Member Functions inherited from StraightBoundary< 2, 3 >
	StraightBoundary ()

virtual Point< 3 >	get_new_point_on_line (const typename Triangulation< 2, 3 >::line_iterator &line) const

virtual Point< 3 >	get_new_point_on_quad (const typename Triangulation< 2, 3 >::quad_iterator &quad) const

virtual void	get_intermediate_points_on_line (const typename Triangulation< 2, 3 >::line_iterator &line, std::vector< Point< 3 > > &points) const

virtual void	get_intermediate_points_on_quad (const typename Triangulation< 2, 3 >::quad_iterator &quad, std::vector< Point< 3 > > &points) const

virtual Tensor< 1, 3 >	normal_vector (const typename Triangulation< 2, 3 >::face_iterator &face, const Point< 3 > &p) const

virtual void	get_normals_at_vertices (const typename Triangulation< 2, 3 >::face_iterator &face, typename Boundary< 2, 3 >::FaceVertexNormals &face_vertex_normals) const

virtual Point< 3 >	project_to_surface (const typename Triangulation< 2, 3 >::line_iterator &line, const Point< 3 > &candidate) const

virtual Point< 3 >	project_to_surface (const typename Triangulation< 2, 3 >::quad_iterator &quad, const Point< 3 > &candidate) const

virtual Point< 3 >	project_to_surface (const typename Triangulation< 2, 3 >::hex_iterator &hex, const Point< 3 > &candidate) const

Public Member Functions inherited from Boundary< dim, spacedim >
virtual	~Boundary ()

virtual void	get_intermediate_points_on_line (const typename Triangulation< dim, spacedim >::line_iterator &line, std::vector< Point< spacedim > > &points) const

virtual void	get_intermediate_points_on_quad (const typename Triangulation< dim, spacedim >::quad_iterator &quad, std::vector< Point< spacedim > > &points) const

void	get_intermediate_points_on_face (const typename Triangulation< dim, spacedim >::face_iterator &face, std::vector< Point< spacedim > > &points) const

virtual Point< spacedim >	project_to_surface (const typename Triangulation< dim, spacedim >::line_iterator &line, const Point< spacedim > &candidate) const

virtual Point< spacedim >	project_to_surface (const typename Triangulation< dim, spacedim >::quad_iterator &quad, const Point< spacedim > &candidate) const

virtual Point< spacedim >	project_to_surface (const typename Triangulation< dim, spacedim >::hex_iterator &hex, const Point< spacedim > &candidate) const

Public Member Functions inherited from FlatManifold< dim, spacedim >
	FlatManifold (const Tensor< 1, spacedim > &periodicity=Tensor< 1, spacedim >(), const double tolerance=1e-10)

virtual Point< spacedim >	get_new_point (const Quadrature< spacedim > &quad) const

virtual Point< spacedim >	project_to_manifold (const std::vector< Point< spacedim > > &points, const Point< spacedim > &candidate) const

virtual Tensor< 1, spacedim >	get_tangent_vector (const Point< spacedim > &x1, const Point< spacedim > &x2) const

const Tensor< 1, spacedim > &	get_periodicity () const

Public Member Functions inherited from Manifold< dim, spacedim >
virtual	~Manifold ()

virtual Point< spacedim >	get_new_point_on_line (const typename Triangulation< dim, spacedim >::line_iterator &line) const

virtual Point< spacedim >	get_new_point_on_quad (const typename Triangulation< dim, spacedim >::quad_iterator &quad) const

virtual Point< spacedim >	get_new_point_on_hex (const typename Triangulation< dim, spacedim >::hex_iterator &hex) const

Point< spacedim >	get_new_point_on_face (const typename Triangulation< dim, spacedim >::face_iterator &face) const

Point< spacedim >	get_new_point_on_cell (const typename Triangulation< dim, spacedim >::cell_iterator &cell) const

virtual Tensor< 1, spacedim >	normal_vector (const typename Triangulation< dim, spacedim >::face_iterator &face, const Point< spacedim > &p) const

virtual void	get_normals_at_vertices (const typename Triangulation< dim, spacedim >::face_iterator &face, FaceVertexNormals &face_vertex_normals) const

virtual Point< spacedim >	get_new_point_on_line (const typename Triangulation< dim, spacedim >::line_iterator &line) const

virtual Point< spacedim >	get_new_point_on_quad (const typename Triangulation< dim, spacedim >::quad_iterator &quad) const

virtual Point< spacedim >	get_new_point_on_hex (const typename Triangulation< dim, spacedim >::hex_iterator &hex) const

Point< spacedim >	get_new_point_on_face (const typename Triangulation< dim, spacedim >::face_iterator &face) const

Point< spacedim >	get_new_point_on_cell (const typename Triangulation< dim, spacedim >::cell_iterator &cell) const

virtual Tensor< 1, spacedim >	normal_vector (const typename Triangulation< dim, spacedim >::face_iterator &face, const Point< spacedim > &p) const

virtual void	get_normals_at_vertices (const typename Triangulation< dim, spacedim >::face_iterator &face, FaceVertexNormals &face_vertex_normals) const

Public Member Functions inherited from Subscriptor
	Subscriptor ()

	Subscriptor (const Subscriptor &)

	Subscriptor (Subscriptor &&)

virtual	~Subscriptor ()

Subscriptor &	operator= (const Subscriptor &)

Subscriptor &	operator= (Subscriptor &&)

void	subscribe (const char *identifier=0) const

void	unsubscribe (const char *identifier=0) const

unsigned int	n_subscriptions () const

void	list_subscribers () const

void	serialize (Archive &ar, const unsigned int version)

Public Attributes
const TopoDS_Shape &	sh

Additional Inherited Members
Public Types inherited from Manifold< dim, spacedim >
typedef Tensor< 1, spacedim >	FaceVertexNormals[GeometryInfo< dim >::vertices_per_face]

Static Public Member Functions inherited from Subscriptor
static::ExceptionBase &	ExcInUse (int arg1, char *arg2, std::string &arg3)

static::ExceptionBase &	ExcNoSubscriber (char arg1, char arg2)

Protected Member Functions inherited from Boundary< dim, spacedim >
const std::vector< Point< 1 > > &	get_line_support_points (const unsigned int n_intermediate_points) const

Detailed Description

template<int dim>
class OpenCascade::NormalProjection< dim >

Definition at line 21 of file occ_normal_projection.h.

Constructor & Destructor Documentation

template<int dim>

OpenCascade::NormalProjection< dim >::NormalProjection ( const TopoDS_Shape & sh )

Definition at line 60 of file occ_normal_projection.cc.

Member Function Documentation

template<int dim>

Point< 3 > OpenCascade::NormalProjection< dim >::get_new_point_on_line ( const Triangulation< 2, 3 >::line_iterator & line ) const

virtual

Definition at line 333 of file occ_normal_projection.cc.

template<int dim>

Point< 3 > OpenCascade::NormalProjection< dim >::get_new_point_on_quad ( const Triangulation< 2, 3 >::quad_iterator & quad ) const

virtual

Definition at line 344 of file occ_normal_projection.cc.

template<int dim>

void OpenCascade::NormalProjection< dim >::normal_projection	(	Point< 3 > &	projection,
		const Point< 3 > &	origin
	)		const

template<>

void OpenCascade::NormalProjection< 1 >::normal_projection	(	Point< 3 > &	projection,
		const Point< 3 > &	origin
	)		const

Definition at line 96 of file occ_normal_projection.cc.

template<>

void OpenCascade::NormalProjection< 2 >::normal_projection	(	Point< 3 > &	projection,
		const Point< 3 > &	origin
	)		const

Definition at line 156 of file occ_normal_projection.cc.

template<int dim>

void OpenCascade::NormalProjection< dim >::normal_projection_and_diff_forms	(	Point< 3 > &	projection,
		Point< 3 > &	normal,
		double &	mean_curvature,
		const Point< 3 > &	origin
	)		const

template<>

void OpenCascade::NormalProjection< 1 >::normal_projection_and_diff_forms	(	Point< 3 > &	,
		Point< 3 > &	,
		double &	,
		const Point< 3 > &
	)		const

Definition at line 213 of file occ_normal_projection.cc.

template<>

void OpenCascade::NormalProjection< 2 >::normal_projection_and_diff_forms	(	Point< 3 > &	projection,
		Point< 3 > &	normal,
		double &	mean_curvature,
		const Point< 3 > &	origin
	)		const

Definition at line 224 of file occ_normal_projection.cc.

Member Data Documentation

template<int dim>

const TopoDS_Shape& OpenCascade::NormalProjection< dim >::sh

Definition at line 32 of file occ_normal_projection.h.

The documentation for this class was generated from the following files:

include/occ_normal_projection.h
source/occ_normal_projection.cc
