Build a Multi Reduced Order Model (MultiROM)
In this tutorial, we will show how to aggregate the predictions of different ROMs following the method presented in the paper by Ivagnes et al.
Let’s call \(\boldsymbol{\eta}=(\boldsymbol{x}, \boldsymbol{\mu})\) the problem’s features, namely the space coordinates and the parameters.
The idea is to build and combine a set of ROMs \(\{\mathcal{M}_1, \mathcal{M}_2, \dots, \mathcal{M}_{N}\}\), to approximate a specific high-fidelity field, for instance the parametrized velocity \(\boldsymbol{u}(\boldsymbol{\eta})\). The individual ROMs differ in the reduction approach and/or in the approximation technique. The MultiROM prediction will then be a convex combination of the predictions of the pre-trained individual ROMs. If the \(i\)-th ROM prediction is \(\tilde{\boldsymbol{u}}^{(i)}(\boldsymbol{\eta})\), then the MultiROM prediction will be:
where the weights associated with each ROM in the convex combination are space- and parameter-dependent. In this way, the MultiROM should effectively and automatically identify the ROM with the optimal performance across various regions of the spatial and parameter domains.
To build the model, we have to design a method to compute the weights,
also in unseen settings. We here consider a dataset from the library
Smithers (NavierStokesDataset), and we divide it into three
subsets: - the training dataset (composed of
\(M_{\text{train}}\) instances): used to train the individual ROMs;
- the evaluation dataset (composed of \(M_{\text{evaluation}}\)
instances): used to compute the optimal weights; - the test dataset
(composed of \(M_{\text{test}}\) instances): used to test our
methodology, where the weights are approximated with a regression
technique.
Now the question is: How to compute the weights? We here consider two different approaches: - XMA (as in de Zordo-Banliat et al.), where the weights are computed in the evaluation set, using the following expression:
In the test set, a regression approach (KNN) is used to
approximate the weights at unseen
\(\boldsymbol{\eta}=\boldsymbol{\eta}_{\text{test}}\).
ANN: a neural network takes as input \(\boldsymbol{\eta}\), and gives as output directly the weights \(w^{(i)}, i=1, \dots, N,\) of the convex combination. It is trained to minimize the following loss:
\[\mathcal{L}=\frac{1}{M_{\textrm{test}}} \sum_{j=1}^{M_{\textrm{test}}}\left(\sum_{i=1}^N \left(w^{(i)}(\boldsymbol{\eta}_j) \tilde{\boldsymbol{u}}^{(i)}(\boldsymbol{\eta}_j)\right) - \boldsymbol{u}(\boldsymbol{\eta}_j) \right)^2\]
Let’s begin the tutorial with some useful imports.
import numpy as np
import copy
%pip install -e ../
from ezyrb import Database
from ezyrb import POD, AE, PODAE
from ezyrb import RBF, GPR, ANN, KNeighborsRegressor
from ezyrb import ReducedOrderModel as ROM
from ezyrb import MultiReducedOrderModel as MultiROM
from ezyrb.plugin import Aggregation, DatabaseSplitter
import matplotlib.pyplot as plt
import torch
import torch.nn as nn
from matplotlib.colors import LogNorm
import matplotlib.tri as tri
import matplotlib
from mpl_toolkits.axes_grid1 import make_axes_locatable
Obtaining file:///Users/aivagnes/Desktop/Work/Packages/EZyRB
Preparing metadata (setup.py) ... [?25ldone
[?25hRequirement already satisfied: future in /Library/Frameworks/Python.framework/Versions/3.8/lib/python3.8/site-packages (from ezyrb==1.3.0) (0.18.3)
Requirement already satisfied: numpy in /Library/Frameworks/Python.framework/Versions/3.8/lib/python3.8/site-packages (from ezyrb==1.3.0) (1.24.4)
Requirement already satisfied: scipy in /Library/Frameworks/Python.framework/Versions/3.8/lib/python3.8/site-packages (from ezyrb==1.3.0) (1.10.1)
Requirement already satisfied: matplotlib in /Library/Frameworks/Python.framework/Versions/3.8/lib/python3.8/site-packages (from ezyrb==1.3.0) (3.7.1)
Requirement already satisfied: scikit-learn>=1.0 in /Library/Frameworks/Python.framework/Versions/3.8/lib/python3.8/site-packages (from ezyrb==1.3.0) (1.3.2)
Requirement already satisfied: torch in /Library/Frameworks/Python.framework/Versions/3.8/lib/python3.8/site-packages (from ezyrb==1.3.0) (2.0.1)
Requirement already satisfied: joblib>=1.1.1 in /Library/Frameworks/Python.framework/Versions/3.8/lib/python3.8/site-packages (from scikit-learn>=1.0->ezyrb==1.3.0) (1.2.0)
Requirement already satisfied: threadpoolctl>=2.0.0 in /Library/Frameworks/Python.framework/Versions/3.8/lib/python3.8/site-packages (from scikit-learn>=1.0->ezyrb==1.3.0) (3.1.0)
Requirement already satisfied: contourpy>=1.0.1 in /Library/Frameworks/Python.framework/Versions/3.8/lib/python3.8/site-packages (from matplotlib->ezyrb==1.3.0) (1.0.7)
Requirement already satisfied: cycler>=0.10 in /Library/Frameworks/Python.framework/Versions/3.8/lib/python3.8/site-packages (from matplotlib->ezyrb==1.3.0) (0.11.0)
Requirement already satisfied: fonttools>=4.22.0 in /Library/Frameworks/Python.framework/Versions/3.8/lib/python3.8/site-packages (from matplotlib->ezyrb==1.3.0) (4.39.0)
Requirement already satisfied: kiwisolver>=1.0.1 in /Library/Frameworks/Python.framework/Versions/3.8/lib/python3.8/site-packages (from matplotlib->ezyrb==1.3.0) (1.4.4)
Requirement already satisfied: packaging>=20.0 in /Library/Frameworks/Python.framework/Versions/3.8/lib/python3.8/site-packages (from matplotlib->ezyrb==1.3.0) (23.0)
Requirement already satisfied: pillow>=6.2.0 in /Library/Frameworks/Python.framework/Versions/3.8/lib/python3.8/site-packages (from matplotlib->ezyrb==1.3.0) (9.4.0)
Requirement already satisfied: pyparsing>=2.3.1 in /Library/Frameworks/Python.framework/Versions/3.8/lib/python3.8/site-packages (from matplotlib->ezyrb==1.3.0) (3.0.9)
Requirement already satisfied: python-dateutil>=2.7 in /Library/Frameworks/Python.framework/Versions/3.8/lib/python3.8/site-packages (from matplotlib->ezyrb==1.3.0) (2.8.2)
Requirement already satisfied: importlib-resources>=3.2.0 in /Library/Frameworks/Python.framework/Versions/3.8/lib/python3.8/site-packages (from matplotlib->ezyrb==1.3.0) (5.12.0)
Requirement already satisfied: filelock in /Library/Frameworks/Python.framework/Versions/3.8/lib/python3.8/site-packages (from torch->ezyrb==1.3.0) (3.15.4)
Requirement already satisfied: typing-extensions in /Library/Frameworks/Python.framework/Versions/3.8/lib/python3.8/site-packages (from torch->ezyrb==1.3.0) (4.11.0)
Requirement already satisfied: sympy in /Library/Frameworks/Python.framework/Versions/3.8/lib/python3.8/site-packages (from torch->ezyrb==1.3.0) (1.11.1)
Requirement already satisfied: networkx in /Library/Frameworks/Python.framework/Versions/3.8/lib/python3.8/site-packages (from torch->ezyrb==1.3.0) (3.1)
Requirement already satisfied: jinja2 in /Library/Frameworks/Python.framework/Versions/3.8/lib/python3.8/site-packages (from torch->ezyrb==1.3.0) (3.1.2)
Requirement already satisfied: zipp>=3.1.0 in /Library/Frameworks/Python.framework/Versions/3.8/lib/python3.8/site-packages (from importlib-resources>=3.2.0->matplotlib->ezyrb==1.3.0) (3.15.0)
Requirement already satisfied: six>=1.5 in /Library/Frameworks/Python.framework/Versions/3.8/lib/python3.8/site-packages (from python-dateutil>=2.7->matplotlib->ezyrb==1.3.0) (1.16.0)
Requirement already satisfied: MarkupSafe>=2.0 in /Library/Frameworks/Python.framework/Versions/3.8/lib/python3.8/site-packages (from jinja2->torch->ezyrb==1.3.0) (2.1.2)
Requirement already satisfied: mpmath>=0.19 in /Library/Frameworks/Python.framework/Versions/3.8/lib/python3.8/site-packages (from sympy->torch->ezyrb==1.3.0) (1.3.0)
Installing collected packages: ezyrb
Attempting uninstall: ezyrb
Found existing installation: ezyrb 1.3.0
Uninstalling ezyrb-1.3.0:
Successfully uninstalled ezyrb-1.3.0
Running setup.py develop for ezyrb
Successfully installed ezyrb-1.3.0
[1m[[0m[34;49mnotice[0m[1;39;49m][0m[39;49m A new release of pip is available: [0m[31;49m24.1.1[0m[39;49m -> [0m[32;49m25.0.1[0m
[1m[[0m[34;49mnotice[0m[1;39;49m][0m[39;49m To update, run: [0m[32;49mpip install --upgrade pip[0m
Note: you may need to restart the kernel to use updated packages.
Before starting with the core part of the tutorial, we define a useful function for plotting the solutions on a 2D mesh.
def plot_multiple_internal(db, fields_list, titles_list, figsize=None,
logscale=False, lim_x=(-0.5, 2), lim_y=(-1, 1),
different_cbar=True, clims=None):
'''
Plot multiple internal fields in one figure.
Parameters
----------
db : PinaDataModule
The data module.
fields_list : list
The list of fields to plot.
titles_list : list
The list of titles for each field.
figsize : tuple (optional, default=(16, 16/len(fields_list))
The size of the figure.
logscale : bool (optional, default=False)
Whether to use a logarithmic color scale.
lim_x : tuple (optional, default=(-0.5, 2))
The x-axis limits.
lim_y : tuple (optional, default=(-1, 1))
The y-axis limits.
different_cbar : bool (optional, default=True)
Whether to use a different colorbar for each field.
Returns
----------
None (shows figures)
'''
triang = db.auxiliary_triang
if figsize is None:
figsize = (16, 16/len(fields_list))
fig, axs = plt.subplots(1, len(fields_list), figsize=figsize)
for e, a in enumerate(axs):
field = fields_list[e]
title = titles_list[e]
if clims is None:
clims = fields_list[0].min(), fields_list[0].max()
if logscale:
lognorm = matplotlib.colors.LogNorm(vmin=clims[0]+1e-12,
vmax=clims[1])
c = a.tripcolor(triang, field, cmap='rainbow',
shading='gouraud', norm=lognorm)
else:
c = a.tripcolor(triang, field, cmap='rainbow',
shading='gouraud', vmin=clims[0],
vmax=clims[1])
a.plot(db._coords_airfoil()[0], db._coords_airfoil()[1],
color='black', lw=0.5)
a.plot(db._coords_airfoil(which='neg')[0],
db._coords_airfoil(which='neg')[1],
color='black', lw=0.5)
a.set_aspect('equal')
if lim_x is not None:
a.set_xlim(lim_x)
if lim_y is not None:
a.set_ylim(lim_y)
if title is not None:
a.set_title(title)
if different_cbar:
divider = make_axes_locatable(a)
cax = divider.append_axes("right", size= "5%", pad=0.1)
plt.colorbar(c, cax=cax)
a.set_xticks([])
a.set_yticks([])
if not different_cbar:
divider = make_axes_locatable(axs[0])
cax = divider.append_axes("left", size= "1%", pad=0.1)
plt.colorbar(c, cax=cax)
plt.tight_layout()
plt.show()
Now, we define a simple neural network class, which will be useful in
the multiROM-ANN case. This networks takes as input the spatial
coordinates and the problem parameters, and gives as output the weights
of our multiROM. This class is inherited from the ANN one, with a
newly defined fit function. In this case, in the loss function we
have the discrepancy between the multiROM prediction and the FOM
reference. Moreover, the power of this technique is that it is
continuous in space, so we can train the NN on a reduced amount of
spatial data, gaining time also in the training itself.
class ANN_weights(ANN):
def __init__(self, mrom, layers, function, stop_training, loss=None,
optimizer=torch.optim.Adam, lr=0.001, l2_regularization=0,
frequency_print=500, last_identity=True):
super().__init__(layers, function, stop_training, loss=None,
optimizer=torch.optim.Adam, lr=0.001, l2_regularization=0,
frequency_print=10, last_identity=True)
# import useful data from multirom and roms predictions
self.mrom = mrom
self.params = list(self.mrom.roms.values())[0].validation_full_database.parameters_matrix
self.frequency_print = frequency_print
self.lr = lr
self.l2_regularization = l2_regularization
# import ROMs and validation predictions of all ROMs
self.rom_validation_predictions = {}
for rom in self.mrom.roms:
rom_pred = self.mrom.roms[rom]
rom_pred = rom_pred.predict(self.params)
rom_pred = rom_pred.reshape(rom_pred.shape[0]*rom_pred.shape[1], 1)
self.rom_validation_predictions[rom] = self._convert_numpy_to_torch(rom_pred)
# Device configuration
self.device = torch.device('mps' if torch.backends.mps.is_available() else 'cpu')
print(f"Using device: 💻 {self.device}")
def _build_model_(self, points):
layers = self.layers.copy()
layers.insert(0, points.shape[1])
layers.append(len(self.mrom.roms))
self.model = self._list_to_sequential(layers, self.function)
# Move the model to the device
self.model.to(self.device)
def fit(self, points, values): # points=(x, mu) and values=(snapshots)
self._build_model_(points)
optimizer = self.optimizer(
self.model.parameters(),
lr=self.lr, weight_decay=self.l2_regularization)
#scheduler = torch.optim.lr_scheduler.ReduceLROnPlateau(optimizer, mode='min', factor=0.9, patience=1000)
points = self._convert_numpy_to_torch(points)
values = self._convert_numpy_to_torch(values)
# Move everything to the device
points = points.to(self.device)
values = values.to(self.device)
self.rom_validation_predictions = {rom: pred.to(self.device) for rom, pred in self.rom_validation_predictions.items()}
# train the neural network
n_epoch = 1
flag = True
while flag:
# compute output of ANN
y_pred = self.model(points)
# compute aggregated solution from output weights of ANN
aggr_pred = torch.zeros(values.shape, device=self.device)
for i, rom in enumerate(self.mrom.roms):
weight = y_pred.clone()[..., i].unsqueeze(-1)
aggr_pred += weight*self.rom_validation_predictions[rom]
# difference between aggregated solution and exact solution
loss = self.loss(aggr_pred, values)
optimizer.zero_grad()
loss.backward()
optimizer.step()
scalar_loss = loss.item()
self.loss_trend.append(scalar_loss)
#scheduler.step(scalar_loss)
for criteria in self.stop_training:
if isinstance(criteria, int): # stop criteria is an integer
if n_epoch == criteria:
flag = False
elif isinstance(criteria, float): # stop criteria is float
if scalar_loss < criteria:
flag = False
if (flag is False or
n_epoch == 1 or n_epoch % self.frequency_print == 0):
print(f'[epoch {n_epoch:6d}]\t{scalar_loss:e}')
n_epoch += 1
return optimizer
def predict(self, x):
# Move the model to the device
x = self._convert_numpy_to_torch(np.array(x))
x = x.to(self.device)
y_new = self.model(x)
ynew = y_new.cpu().detach().numpy()
return ynew
Now we can introduce the dataset, taken from the library Smithers.
The test case here considered is AirfoilTransonicDataset, namely the
transonic flow over an airfoil (NACA 0012), with the angle of attack
varying in the range [\(0^{\circ}\), \(10^{\circ}\)] at the
Reynolds number \(Re=10^7\).
This test case is quite challenging, as it presents shocks, and the shock position varies a lot from one snapshot to the other. The full order implementation has been done in OpenFOAM (using a finite volume discretization) and has been validated with the results in https://ntrs.nasa.gov/citations/19850019511 and in https://doi.org/10.2514/1.J051329.
The AirfoilTransonicDataset is a dictionary including:
pts_coordinates: the points’ coordinates, divided into:pts_coordinates['internal']: x-y coordinates in internal mesh;pts_coordinates['airfoil']: x-y coordinates on the airfoil;
params: the parameters, in our case only the angle of attack;snapshots: the snapshots’ fields, divided into:snapshots['internal']: the fields evaluated on the 2D internal mesh (we will focus on the velocity magnitudemag(v));snapshots['airfoil']: the fields on the airfoil (1D fields).
We focus here on the 2D mag(v) field. Let’s try to read the dataset!
from smithers.dataset import NavierStokesDataset, AirfoilTransonicDataset
data = AirfoilTransonicDataset()
field = 'mag(v)'
coords = data.pts_coordinates["internal"].T
params = data.params
snaps = data.snapshots["internal"][field]
snaps_max = np.max(snaps)
snaps /= snaps_max
print("Shape of parameters vector: ", params.shape)
print("Shape of snapshots matrix: ", snaps.shape)
Shape of parameters vector: (100, 1)
Shape of snapshots matrix: (100, 45448)

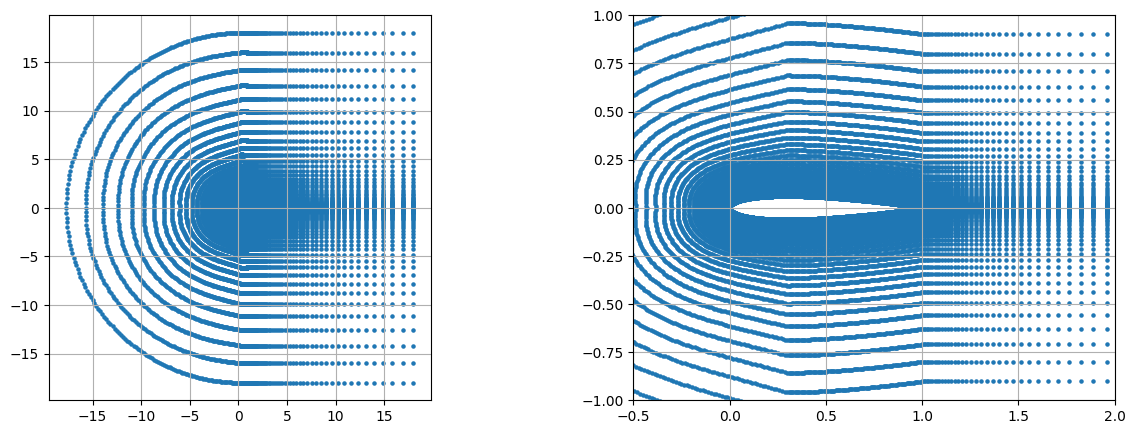

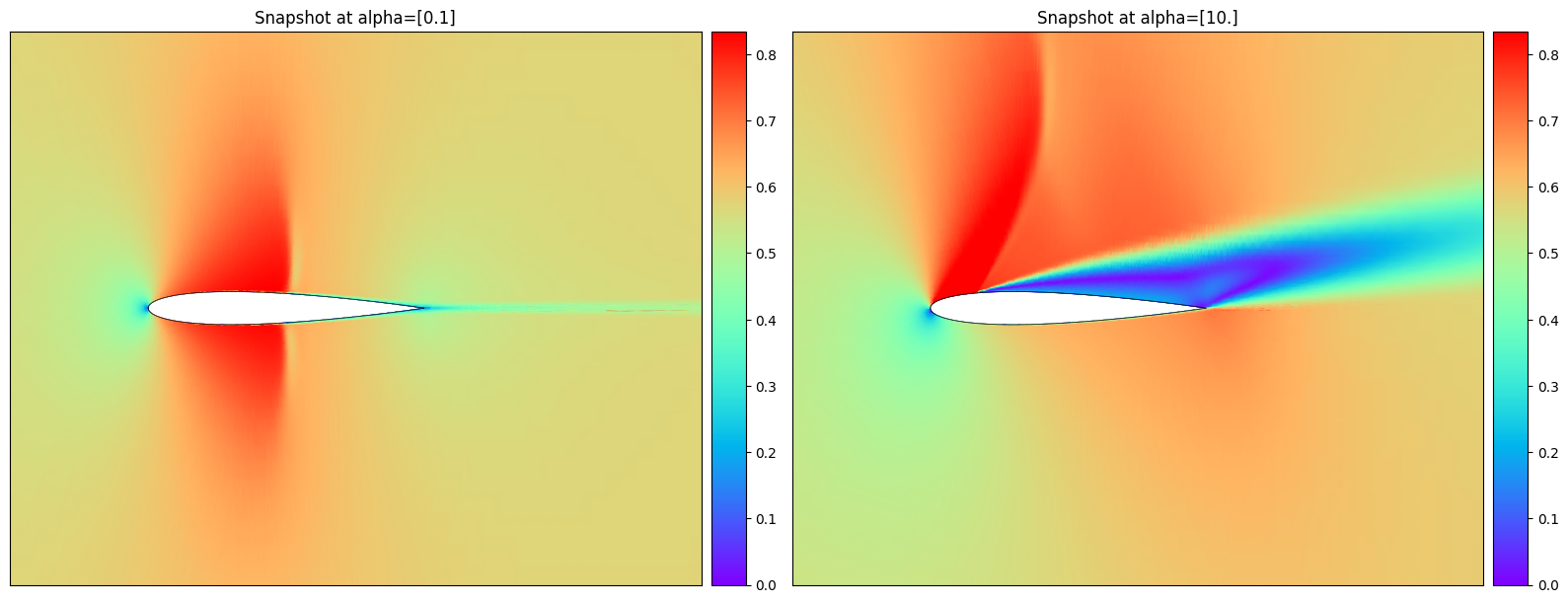

Let’s try now to visualize the 2D spatial coordinates and the velocity magnitude snapshots for the two extreme parameters.
idx = 0
# Plot coordinates
fig, ax = plt.subplots(1, 2, figsize=(15, 5))
ax[0].scatter(data.pts_coordinates["internal"][0, :],
data.pts_coordinates["internal"][1, :], s=5)
ax[1].scatter(data.pts_coordinates["internal"][0, :],
data.pts_coordinates["internal"][1, :], s=5)
ax[1].set_xlim(-0.5, 2)
ax[1].set_ylim(-1, 1)
for a in ax:
a.grid()
a.set_aspect("equal")
plt.show()
plot_multiple_internal(data, [snaps[0], snaps[-1]], [f"Snapshot at alpha={params[0]}", f"Snapshot at alpha={params[-1]}"],
figsize=None, logscale=False, lim_x=(-0.5, 2), lim_y=(-1, 1), different_cbar=True)
Then, we can create the database for the ROMs and initialize the reduction and approximation approaches. Here, we decide to consider POD and PODAE as reduction techniques, RBF and GPR as approximation strategies. In the end, we are considering four ROMs: POD-RBF, POD-GPR, PODAE-RBF, PODAE-GPR.
# Create the database
db_all = Database(params, snaps, coords)
# Define some reduction and approximation methods to test
rank = 3
pod_for_podae = POD('svd', rank=80)
ae_for_podae = AE([30, 10, rank], [rank, 10, 30], nn.Softplus(), nn.Softplus(), 50000, lr=1e-3, frequency_print=2000)
reduction_methods = {
'POD': POD('svd', rank=rank),
'PODAE': PODAE(pod_for_podae, ae_for_podae)
}
approximation_methods = {
'RBF': RBF(),
'GPR': GPR()
}
We now define the ROMs (store into a simple dictionary). Note that we
use the DatabaseSplitter plugin to split our database into train,
validation, test, and predict sets. Here we will only use the train,
validation, and predict sets.
# Define a dictionary to store the ROMs
roms_dict = {}
db_splitter_plugin = DatabaseSplitter(train=0.6, validation=0.3, test=0.,
predict=0.1, seed=42)
# Train a ROM for each combination of reduction and approximation
for redname, redclass in reduction_methods.items():
for approxname, approxclass in approximation_methods.items():
rom = ROM(copy.deepcopy(db_all),
copy.deepcopy(redclass),
copy.deepcopy(approxclass),
plugins=[db_splitter_plugin])
roms_dict[f'{redname}_{approxname}'] = rom
Then, the definition of the MultiROM follows. We can now fit the
MultiROM, which coincides with fitting the individual ROMs separately.
# Build a simple multiROM without aggregation and save it
multirom_noagg = MultiROM(roms_dict)
# Fit the multiROM (this step may take some time)
multirom_noagg.fit()
[epoch 1] 2.469141e+02
[epoch 2000] 1.377898e-01
[epoch 4000] 1.071991e-01
[epoch 6000] 7.265408e-02
[epoch 8000] 4.396581e-02
[epoch 10000] 3.937927e-02
[epoch 12000] 3.674430e-02
[epoch 14000] 4.076399e-02
[epoch 16000] 2.940542e-02
[epoch 18000] 2.764397e-02
[epoch 20000] 2.988867e-02
[epoch 22000] 2.159446e-02
[epoch 24000] 2.006776e-02
[epoch 26000] 1.967250e-02
[epoch 28000] 1.194988e-02
[epoch 30000] 9.829493e-03
[epoch 32000] 9.823296e-03
[epoch 34000] 8.634089e-03
[epoch 36000] 8.533438e-03
[epoch 38000] 8.409876e-03
[epoch 40000] 1.002743e-02
[epoch 42000] 1.035028e-02
[epoch 44000] 8.028184e-03
[epoch 46000] 8.383193e-03
[epoch 48000] 7.963227e-03
[epoch 50000] 1.061061e-02
[epoch 1] 2.433394e+02
[epoch 2000] 2.430486e-01
[epoch 4000] 8.800354e-02
[epoch 6000] 6.279282e-02
[epoch 8000] 4.753726e-02
[epoch 10000] 4.444053e-02
[epoch 12000] 4.448576e-02
[epoch 14000] 4.391388e-02
[epoch 16000] 4.341885e-02
[epoch 18000] 3.927369e-02
[epoch 20000] 3.098299e-02
[epoch 22000] 2.612145e-02
[epoch 24000] 2.182353e-02
[epoch 26000] 2.140819e-02
[epoch 28000] 2.090856e-02
[epoch 30000] 2.038679e-02
[epoch 32000] 1.961394e-02
[epoch 34000] 1.646917e-02
[epoch 36000] 1.557970e-02
[epoch 38000] 1.507105e-02
[epoch 40000] 1.453493e-02
[epoch 42000] 1.511188e-02
[epoch 44000] 1.419082e-02
[epoch 46000] 1.334900e-02
[epoch 48000] 1.282931e-02
[epoch 50000] 1.201333e-02
<ezyrb.reducedordermodel.MultiReducedOrderModel at 0x30cc6edc0>
After fitting the individual models in the train database, we can now read the validation and test databases, and, for example, visualize the ROM predictions for some test parameters.
# Get the dictionary of ROMs
roms_dict = multirom_noagg.roms
# Extract one ROM from the dictionary, and read the validation and test databases
rom_one = list(multirom_noagg.roms.values())[0]
db_validation = rom_one.validation_full_database
db_test = rom_one.predict_full_database
# Visualize the results of each ROM in the multiROM without aggregation on
# a new parameter
j = 0 # we choose an index to plot the solution and the weights
p = db_test.parameters_matrix[j]
print("Test parameter for plotting: ", p)
fields = []
roms_pred = [rom.predict([p]).flatten() for rom in roms_dict.values()]
roms_pred.append(db_test.snapshots_matrix[j])
errs = [np.abs(r - db_test.snapshots_matrix[j])+1e-10 for r in roms_pred[:-1]]
labels = [f'{key}' for key in roms_dict.keys()]
labels.append("FOM")
plot_multiple_internal(data, roms_pred, labels, different_cbar=False)
plot_multiple_internal(data, errs, [f"{l} - abs. error" for l in labels], logscale=True, different_cbar=False)
Test parameter for plotting: [0.2]
We can see that the POD_* solutions are more overdiffusive, while
the PODAE_* solutions better capture the discontinuity, even if they
still exhibit imprecisions.
We now initialize two novel multiROMs using the plugin
Aggregation. One model is for the standard XMA aggregation
(indicated with fit_function=None) and uses KNN as regressor.
The other model uses the ANN_weights class to compute the weights
starting from the individual ROM prediction. In both cases, the weights
are trained in the validation set.
print("Fitting multiROM with KNN aggregation...")
knn = KNeighborsRegressor()
multirom_KNN = MultiROM(roms_dict, plugins=[Aggregation(fit_function=None, predict_function=knn), db_splitter_plugin])
multirom_KNN.fit()
Fitting multiROM with KNN aggregation...
Optimal sigma value in weights: [0.009994]
<ezyrb.reducedordermodel.MultiReducedOrderModel at 0x30fd2f310>
print("Fitting multiROM with ANN aggregation...")
ann = ANN_weights(multirom_noagg, [64, 64, 64],[nn.Softplus(), nn.Softplus(), nn.Softplus(), nn.Softmax(dim=-1)],
stop_training=1000, lr=1e-3, frequency_print=100, l2_regularization=0)
multirom_ANN = MultiROM(roms_dict, plugins=[Aggregation(fit_function=ann), db_splitter_plugin])
multirom_ANN.fit()
Fitting multiROM with ANN aggregation...
Using device: 💻 mps
[epoch 1] 1.110127e-04
[epoch 100] 2.332629e-05
[epoch 200] 2.292044e-05
[epoch 300] 2.286620e-05
[epoch 400] 2.281346e-05
[epoch 500] 2.274650e-05
[epoch 600] 2.265942e-05
[epoch 700] 2.256762e-05
[epoch 800] 2.250623e-05
[epoch 900] 2.247204e-05
[epoch 1000] 2.244576e-05
<ezyrb.reducedordermodel.MultiReducedOrderModel at 0x30fd2f7c0>
Let’s now quantify the relative error on test parameters for the individual ROMs and for the multiROM strategies.
multiroms = {}
multiroms["KNN"] = multirom_KNN
multiroms["ANN"] = multirom_ANN
header = '{:10s}'.format('')
for name in approximation_methods:
header += ' {:>16s}'.format(name)
print(header)
for redname, redclass in reduction_methods.items():
row = '{:10s}'.format(redname)
for approxname, approxclass in approximation_methods.items():
rom = roms_dict[redname+'_'+approxname]
row += ' {:16e}'.format(rom.test_error(db_test))
print(row)
print('-'*len(row))
for model_name in multiroms:
row = '{:10s}'.format(model_name)
multirom_ = multiroms[model_name]
row += '- MultiROM {:16e}'.format(multirom_.test_error(db_test))
print(row)
RBF GPR
POD 5.263353e-02 5.263348e-02
--------------------------------------------
PODAE 9.785834e-03 9.695809e-03
--------------------------------------------
KNN - MultiROM 1.304681e-02
ANN - MultiROM 9.233725e-03
We can try now to visualize the predicted multiROMs solutions for a test parameters, and the errors with respect to the corresponding FOM reference. The multiROM automatically detects the best method in different spatial coordinates.
fields = []
roms_pred = []
for rom in multiroms.values():
roms_pred.append(rom.predict(np.array([p]).reshape(-1, 1)).flatten())
roms_pred.append(db_test.snapshots_matrix[j].flatten())
errs = [np.abs(r - db_test.snapshots_matrix[j])+1e-10 for r in roms_pred[:-1]]
labels = list(multiroms.keys())
labels.append("FOM")
# visualize fields

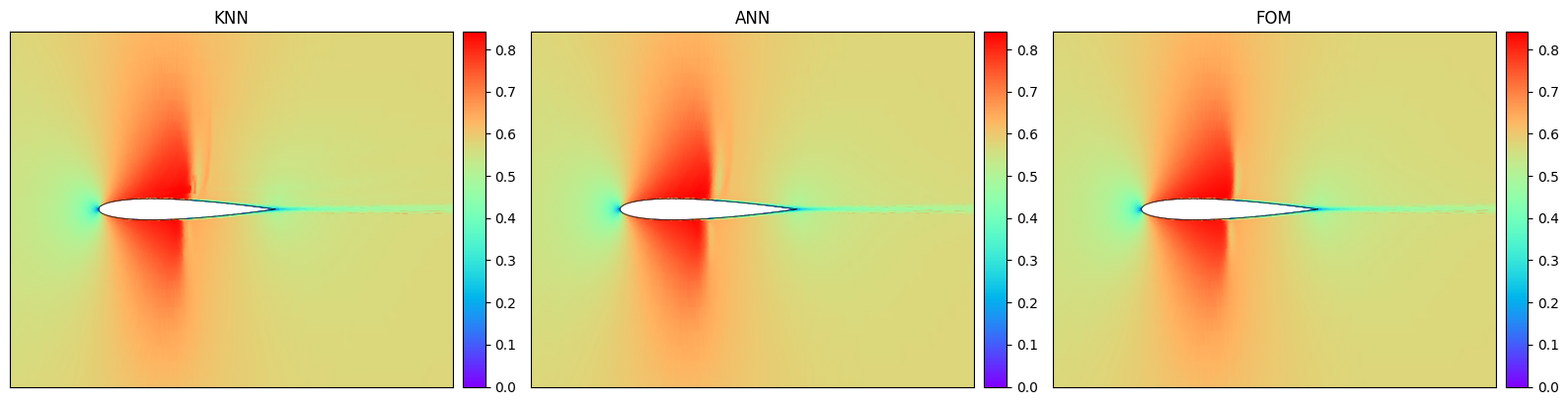

plot_multiple_internal(data, roms_pred, labels,
figsize=None, logscale=False, lim_x=(-0.5, 2), lim_y=(-1, 1))
# visualize errors in log scale

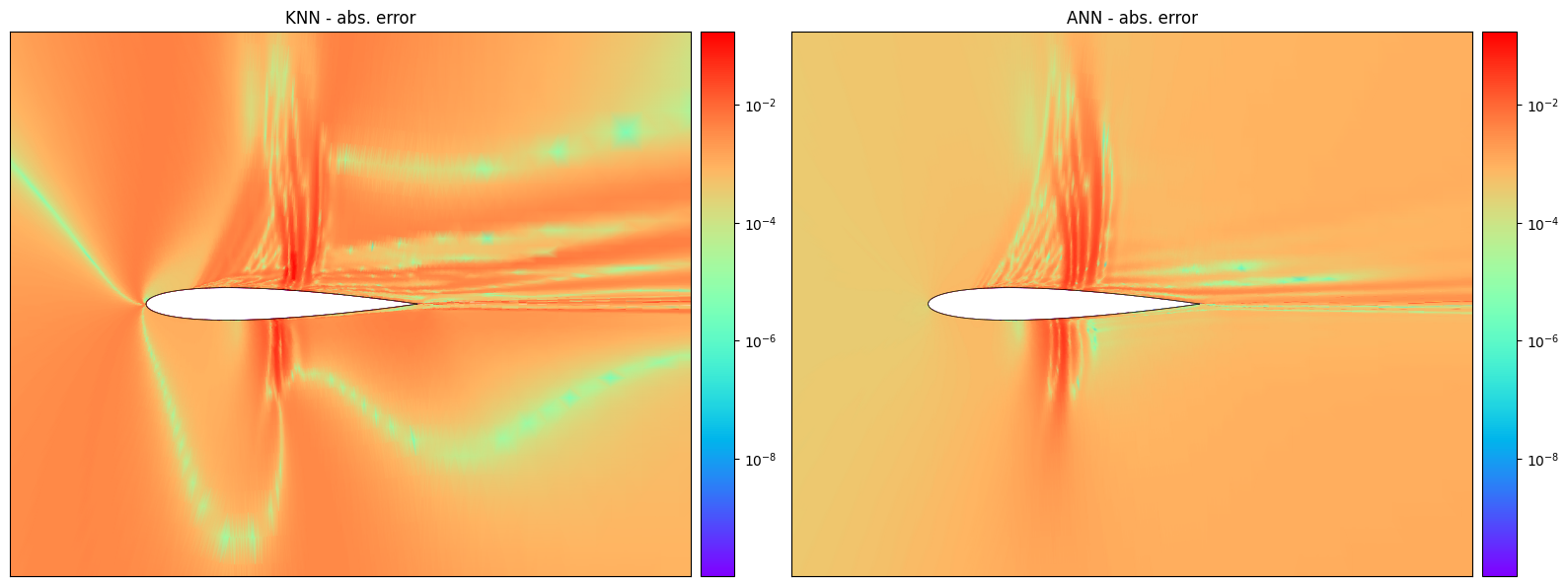

plot_multiple_internal(data, errs, [f"{l} - abs. error" for l in labels],
figsize=None, logscale=True, lim_x=(-0.5, 2), lim_y=(-1, 1))

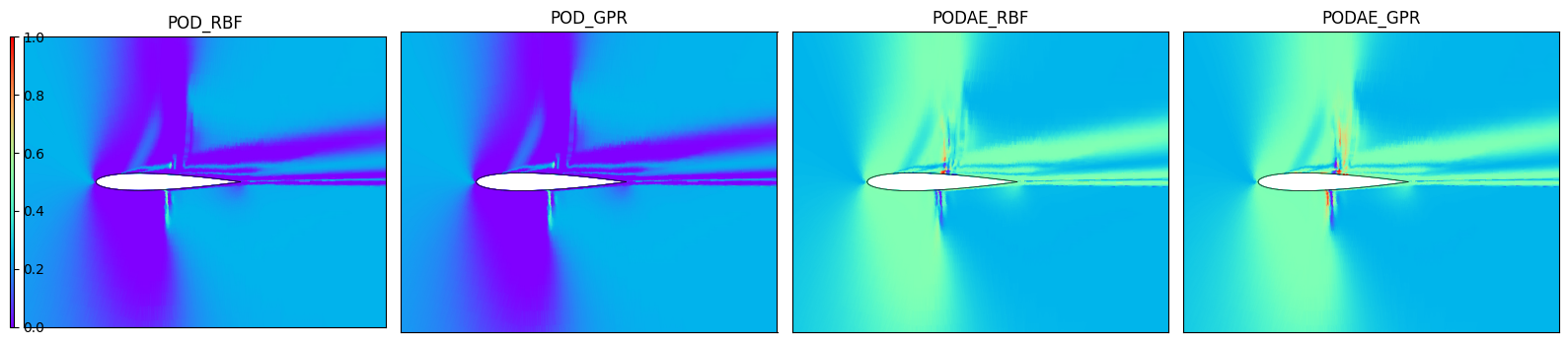

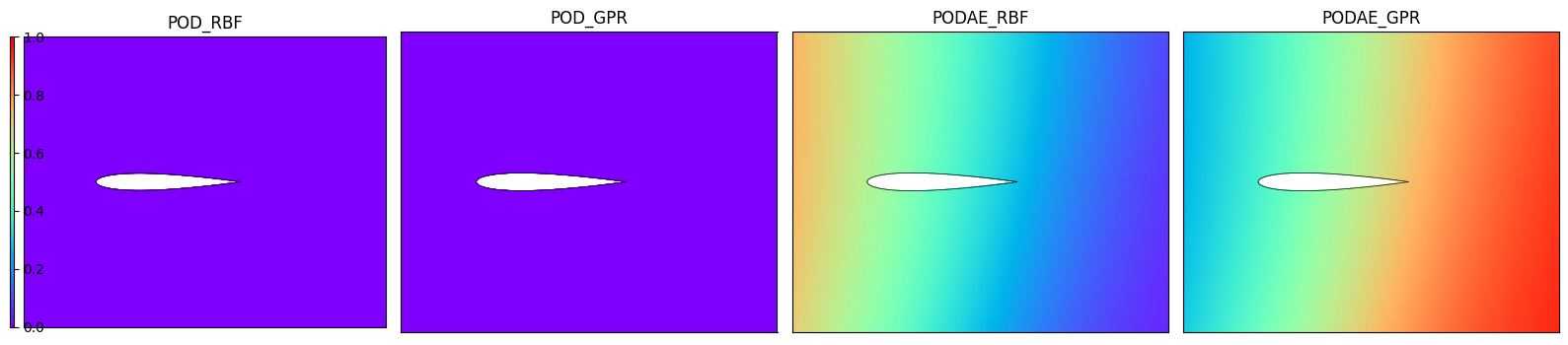

We finally try to visualize the weights, for example for the standard XMA multiROM strategy, for the same test parameter as before.
for mrom in multiroms.values():
weights_list = []
for rom in roms_dict.keys():
weights_list.append(mrom.weights_predict[rom].flatten())
plot_multiple_internal(data, weights_list, list(roms_dict.keys()),
figsize=None, logscale=False, lim_x=(-0.5, 2), lim_y=(-1, 1), different_cbar=False, clims=[0, 1])
We can immediately see that the standard aggregation algorithm is “activating” the nonlinear reduction approaches (PODAE) in the spatial regions close to the shock and to the wake, while in the rest part of the domain the weights are 50% for POD methods and 50% for PODAE methods. The ANN strategy instead converges to weights with less space-dependency. This highly depends on the architecture of the ANN, and on all the hyperparameters (activation function, learning rate, weight decay).
What’s next?
There’s still a lot to do like: - improving the training of the ANN by adding a negative loss contribution depending on the spatial variability of the weights. In this way we try to enforce more space variability; - try to combine FOM and ROM together (multifidelity aggregation).
